1998 Toyota Corolla VE 1ZZFE ZZE110 Radiator and Water Outlet Parts Exploded Diagram



1998 Toyota Corolla VE 1ZZFE ZZE110 Radiator and Water Outlet Parts Exploded Diagram:
16261. HOSE, WATER BY-PASS
16261. HOSE, WATER BY-PASS
16261. HOSE, WATER BY-PASS
16261A. CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264. HOSE, WATER BY-PASS, NO.2
16264. HOSE, WATER BY-PASS, NO.2
16264. HOSE, WATER BY-PASS, NO.2
16264A. CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268. PIPE, WATER BY-PASS, NO.1
16268. PIPE, WATER BY-PASS, NO.1
16268G. GASKET(FOR WATER BY-PASS PIPE)
16268G. GASKET(FOR WATER BY-PASS PIPE)
16321. INLET, WATER (NOT AVAILABLE)
16321. INLET, WATER
16325. GASKET, WATER INLET HOUSING, NO.1
16331A. THERMOSTAT
16361. FAN
16361B. FAN, NO.2
16363. MOTOR, COOLING FAN
16363. MOTOR, COOLING FAN
16363A. MOTOR, COOLING FAN, NO.2
16363A. MOTOR, COOLING FAN, NO.2
16400. RADIATOR ASSY
16400B. PLUG, RADIATOR DRAIN COCK
16400F. PACKING(FOR RADIATOR DRAIN COCK)
16401. CAP SUB-ASSY, RADIATOR
16401. CAP SUB-ASSY, RADIATOR
16470. TANK ASSY, RADIATOR RESERVE
16470A. HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470A. HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B. CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471. CAP SUB-ASSY, RESERVE TANK
16473. SUPPORT(FOR RADIATOR RESERVE TANK)
16533. SUPPORT, RADIATOR, UPPER
16535. SUPPORT, RADIATOR, LOWER
16535. SUPPORT, RADIATOR, LOWER
16571. HOSE, RADIATOR, INLET
16571. HOSE, RADIATOR, INLET
16571. HOSE, RADIATOR, INLET
16571A. CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572. HOSE, RADIATOR, OUTLET
16572A. CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581. CLAMP, HOSE(FOR WATER HOSE)
16701. SHROUD SUB-ASSY, FAN

1999 Toyota Corolla VE 1ZZFE Engine Alternator Exploded Diagram

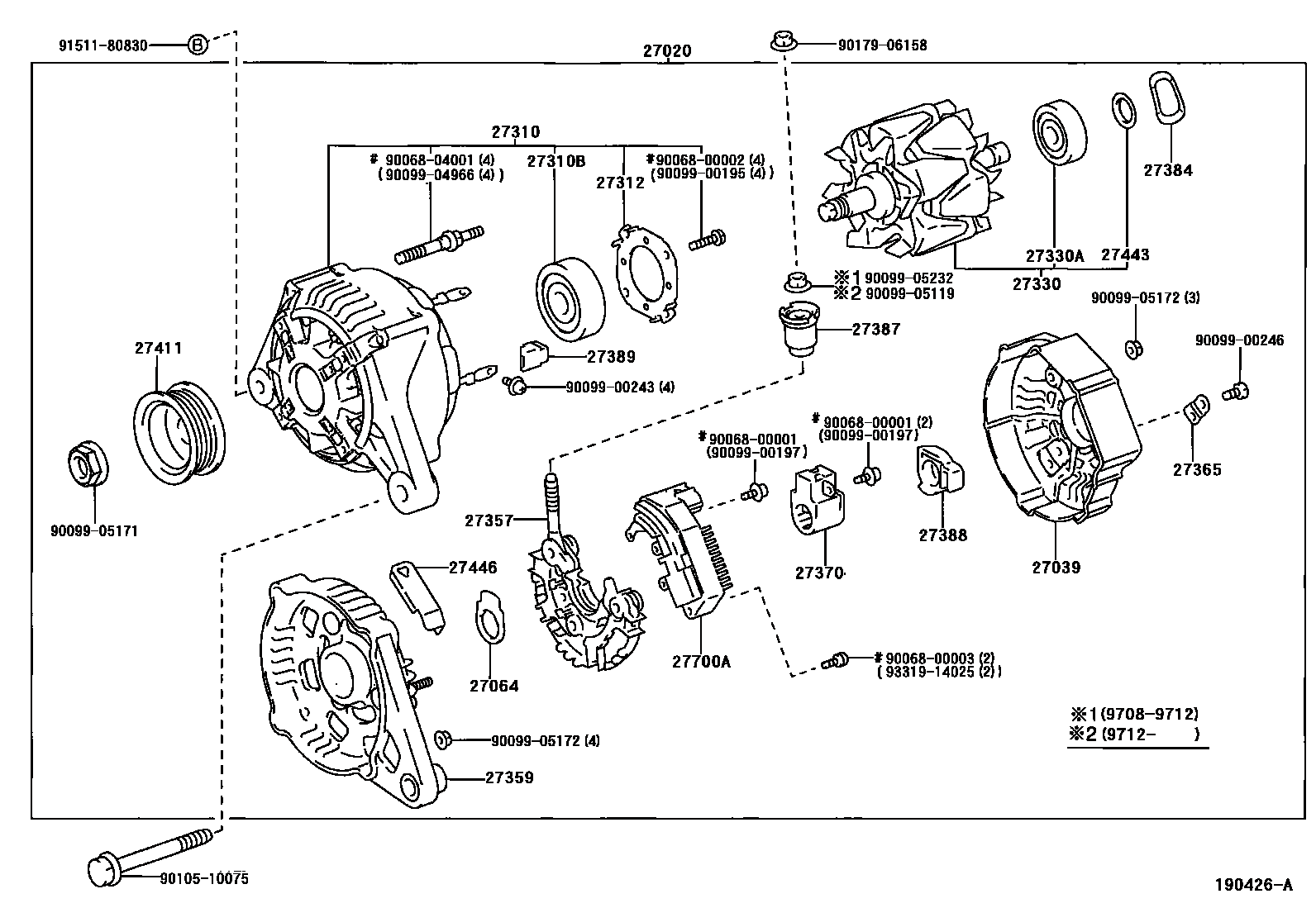

Exploded Diagram and Parts Name of 1999 Toyota Corolla Alternator for VE Trim Corolla Powered by 1ZZFE engine mated with a Manual Transmission, model code ZZE110:
27020. ALTERNATOR ASSY
27039. COVER, ALTERNATOR REAR END
27064. SEAL, ALTERNATOR PLATE
27310. FRAME ASSY, DRIVE END, ALTERNATOR
27310B. BEARING(FOR ALTERNATOR DRIVE END FRAME)
27312. PLATE, RETAINER
27330. ROTOR ASSY, ALTERNATOR
27330A. BEARING(FOR ALTERNATOR ROTOR)
27357. HOLDER, ALTERNATOR, W/RECTIFIER
27359. FRAME, ALTERNATOR RECTIFIER END
27365. PLATE, TERMINAL
27370. HOLDER ASSY, ALTERNATOR BRUSH
27384. WASHER
27387. INSULATOR, TERMINAL
27388. COVER, ALTERNATOR BRUSH
27389. INSULATOR, TERMINAL
27411. PULLEY, ALTERNATOR
27443. COVER, ALTERNATOR BEARING
27443. COVER, ALTERNATOR BEARING
27446. CLIP, ALTERNATOR CORD
27700A. REGULATOR ASSY, GENERATOR

2006 Toyota Corolla Sedan/ Hatchback 1ZZFE Cylinder Head Exploded Diagram



2006 Toyota Corolla Sedan/ Hatchback 1ZZFE Cylinder Head Exploded Diagram:
11101. HEAD SUB-ASSY, CYLINDER
11101A. BOLT(FOR CYLINDER HEAD SET)
11101B. WASHER, PLATE(FOR CYLINDER HEAD SET)
11101J. VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101W. SENSOR, CRANK POSITION, NO.1
11115. GASKET, CYLINDER HEAD
11117B. PLUG, W/HEAD TAPER SCREW, NO.2
11117H. GASKET(FOR WATER HOLE)
11122. BUSH, INTAKE VALVE GUIDE
11126. BUSH, EXHAUST VALVE GUIDE
11131. SEAT, INTAKE VALVE
11135. SEAT, EXHAUST VALVE
11155A. PIN, RING W/HEAD
11159A. BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201. COVER SUB-ASSY, CYLINDER HEAD
11201B. WASHER, SEAL(FOR CYLINDER HEAD COVER)
11201H. BOLT(FOR CYLINDER HEAD COVER)
11212. COVER, CYLINDER HEAD, NO.2
11213. GASKET, CYLINDER HEAD COVER
12108. CAP SUB-ASSY, OIL FILLER
12108A. GASKET(FOR OIL FILLER CAP)
12281A. HANGER, ENGINE, NO.1
15678A. FILTER, OIL CONTROL VALVE
