This DIY will disconnect your day time running lights and your automatic lights . Not one or the other but both .
Remove three screws along the inside top seam of the glove box. Then by the kick panel on next to the passenger door, remove a 10mil bolt. Once the glove box is removed it should look like this (straight on...)

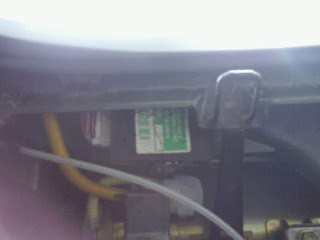

Next is locating the DRL RELAY box. You might have to lay down a little in the floor board and look up.... this is its location...

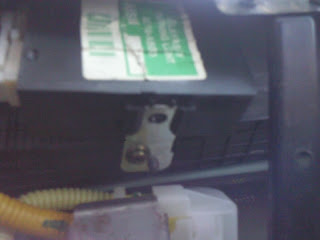

Next, you will have to remove the box from its little "snug" location. It slides off the metal piece. Just place a finger or two behind it and give it a little forceful tug and it should slide right off...

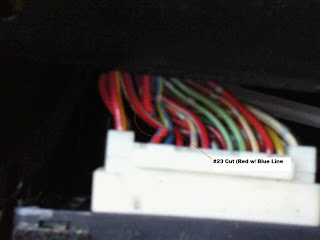

Now just pull it down a little and locate the RED WIRE WITH A BLUE LINE on it #23. Snip that wire... Make sure you put electrical tape on the ends of the exposed wire and leave enough wire so if you ever want to reconnect then you can at a later time .
Remove three screws along the inside top seam of the glove box. Then by the kick panel on next to the passenger door, remove a 10mil bolt. Once the glove box is removed it should look like this (straight on...)
Next is locating the DRL RELAY box. You might have to lay down a little in the floor board and look up.... this is its location...
Next, you will have to remove the box from its little "snug" location. It slides off the metal piece. Just place a finger or two behind it and give it a little forceful tug and it should slide right off...
Now just pull it down a little and locate the RED WIRE WITH A BLUE LINE on it #23. Snip that wire... Make sure you put electrical tape on the ends of the exposed wire and leave enough wire so if you ever want to reconnect then you can at a later time .
I dont see any numbers on any of the wires :S
ReplyDeleteThank. Excelent report.
ReplyDeleteHi, i have a 99 corolla with DRLs running an HID kit. The HID kit has been good for about 1month and all of sudden both lights stop working yesterday. Should i disable the DRL in order for it to work again?
ReplyDeleteNope drl is daylight daytime running only you did kit has someting wrong hope helps
ReplyDeleteAmazing tytorial thanks for share finaly get rid of this running during the day thanks again.
ReplyDeleteAWESOME!!!
ReplyDeleteThe informations is very good and important , but i need the wiring diagram of day time running lights of toyota corolla 1998, and need the wiring diagram air conditioner of Mazda B2300 year 1998 . Send information to email ing.franklingarcia@gmail.com
ReplyDeletePut the H4 HARNESS ON HIDS AND YOU'LL BE GOOD.I HAVE ON MY COROLLA
ReplyDeleteIm a little confysed. Someone told me that I have to cut the wire red with white line. I see two wires red with the white line. Can someine here confirm which wire is the correct?
ReplyDeleteI appreciate the fact that you made this page, really, but jesus, could you have taken a crappier pic of the wire??? I got my 98 Corolla apart to do this, but now I'm hangin' because I can't see your wire or your pointer line clearly. Among several red wirers, I have one red wire with a long blue line, but it also has a silver/gray band near the connector. Is that the one? PLEASE BE CLEARER! Thanks, tho.
ReplyDeleteI appreciate the fact that you made this page, really, but jesus, could you have taken a crappier pic of the wire??? I got my 98 Corolla apart to do this, but now I'm hangin' because I can't see your wire or your pointer line clearly. Among several red wirers, I have one red wire with a long blue line, but it also has a silver/gray band near the connector. Is that the one? PLEASE BE CLEARER! Thanks, tho.
ReplyDeletethanks my friend it was really good now i have my light offs during the day i really was looking for something like this, i just have another little problem with my car toyota corolla 1998 american version.
ReplyDeletemy car is getting unluck when i got in a little hole, it seeems that any relay is not working properly and it moves when the car hit something small on the street.
this is my email i would u like u tellme what to do
Ok...i cut the red wire with the blue line... But still having the same issue...any input would be appreciated
ReplyDeleteYou are awesome. Thank you. You are the best...
ReplyDeleteGracias me fue de ayuda!
ReplyDeletei got a toyota corolla 1998 but my DRL relay has different part it is 82810-AB010 which ha only 14 pins on it. which one do i have to cut? is it the same colored wire?
ReplyDeleteGreat layout of disablen the drl had it done in 10 mins. Thanks
ReplyDeleteThe Jainsons Lights, which is situated in chandni chowk light market, is committed towards providing innovative lighting solutions. We try serving the professional and consumer markets; we lead the industry in leveraging to transform homes, buildings and urban spaces.We have a team of dedicated development engineers who design the lights for different places.
ReplyDeletethanks. just did this. the white plastic base actually has 21 and 16 on it where those wires are, so you can determine 23. you may need magnifiers or reader glasses
ReplyDeleteCrazy,I snipped it and nothing changed. Lights stay on and I still ave to disconnect battery. I took the 7.5 fuse out and finally the lights are off but won't come on less I put fuse back in.also with fuse in or out the brights indicator stays blue,key out of ignition and the battery drains out ad if I had the headlights on with car not running which is my problem in first place. But yah snipped redblue wire headlights stayed on,no change. Any help?
ReplyDeleteIm having the same issue, have you found anything to help with it yet?
Delete2000 corolla
