This DIY is for a 2009 Toyota Rav4 Trailer Hitch
Today is only for the hitch I have another video of the trailer hitch wiring .

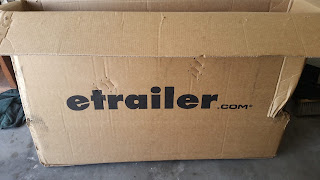

Remove hitch from box and make sure it is for your vehicle .
On the drivers side of the vehicle will be your tow hook and on the passenger side of your vehicle will be 2 open slots where muffler is located .
When removing the bolts make sure you keep the tow hook cause you will need to reinstall it again .
Then you will soapy the rubber isolators for your muffler , Carefully slide the hooks out then use something to hold the pipe up in the air while you install the hitch .
Once side will have 3 bolts and the other side will have two , Make sure knobby side of the washer is grasping the hitch as in photo . That will keep your bolts from backing out .
Make sure you put the hook back on the drivers side torque bolts , Put rubber isolator back for muffler pipe and you are finished .
Your hitch will come with a paper to tell you how much torque is needed on the bolts .
This doesn't mean I can pull anything I want but I bought a highest class that can be install on this vehicle .

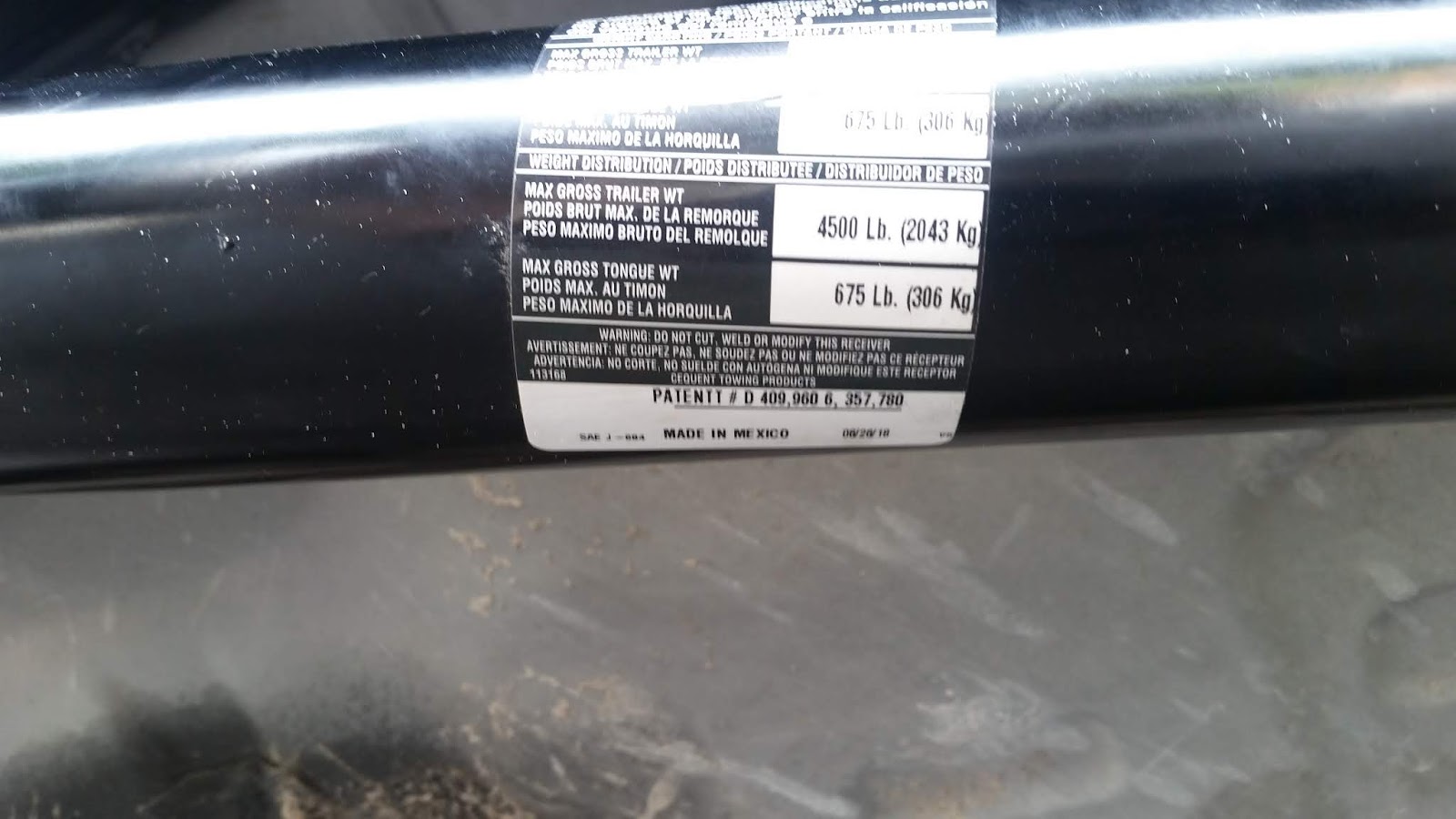

This is a Draw-Tite Tube Trailer Hitch .
Max Gross Trailer Weight 4500 LB
Max Gross Tongue Weight 675 LB
