DIY - Replacement Front Motor Mount 2000 Honda CRV

This is a DIY for a 2000 Honda CRV front motor mount .



First thing you do is remove the bottom of the splash guard .





Once you remove the splash guard you will see the front motor mount - There are 3 bolts holding it down - You will need to make sure you support the bottom of the engine just in case the engine drops a little .







You will notice a difference in the bracket - Make sure you put it on the same way - In this photo will see a black mark to indicate its the bottom .





Once you remove the front motor mount you put it back on the same way .





More DIY @  www.corollacarclub.proboards.com











.



DIY Replacing A/C Condenser Fan Honda CRV 2000

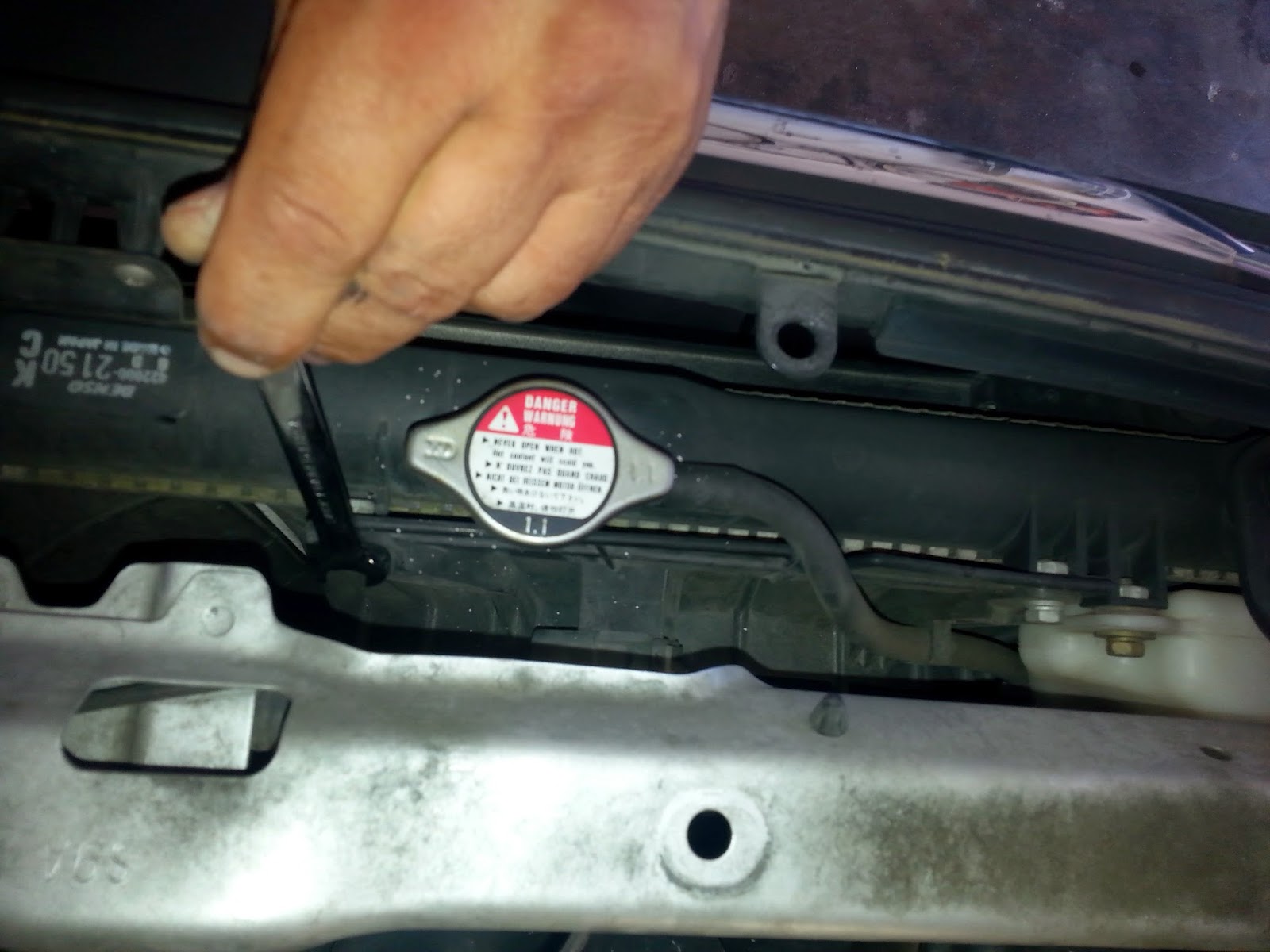

This is a DIY on a 2000 Honda CRV - First you remove all the clips on top of the radiator so that the shield can be taking off to see the fan .



Once you remove the plastic shield you will take off the two nuts holding the fan that is to the LEFT of the radiator - The RIGHT side is for the temperature switch . Then you remove the reservoir for the antifreeze .







There is a bracket that holds the radiator down remove those on each side on the top , Then you remove the bracket that is holding the grill and the plastic bumper off to - This way you can lean the radiator forward and pull out the fan





On the bottom you remove the clips that hold the water shield to the vehicle - You need to remove the little drain hose from the bracket of the condenser fan and a plug that is clipped to the bracket .



Once everything is loosen then you pull the radiator forward carefully and remove the fan from the top .





Then once you remove the fan you follow the steps in reverse to put the new fan back - You might have to purchase new clips cause when they are old they break - There is about 25 or more clips better to purchase them from eBay where they are cheaper .
